Key Features

• 1200mAh genuine rated capacity for extended runtime
• Up to 50% longer performance in compact lighting devices
• Built-in protection circuit for safe, stable operation
• Reliable 3.6V output with 2.5A max continuous discharge
• Durable design rated for 500+ recharge cycles

Overview

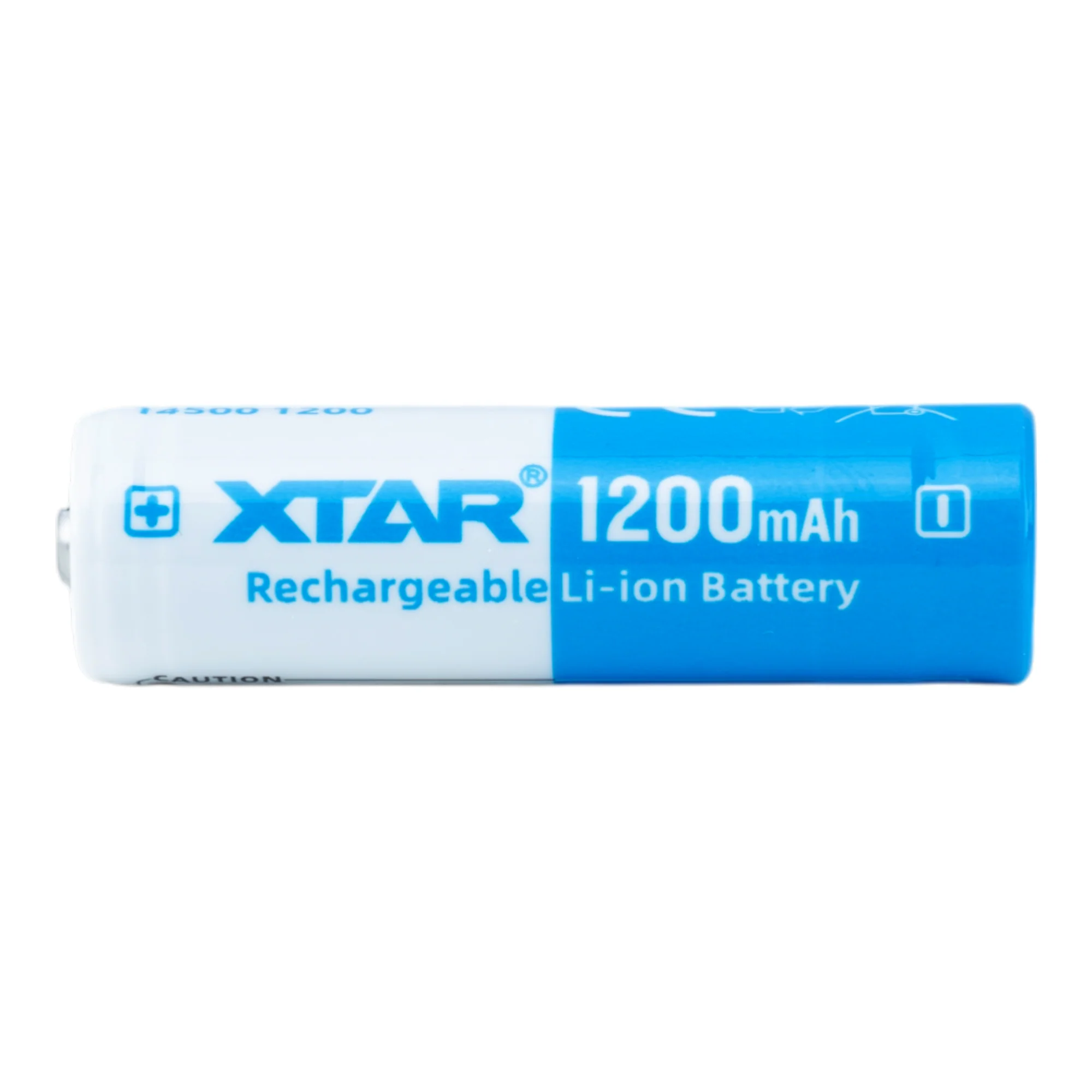

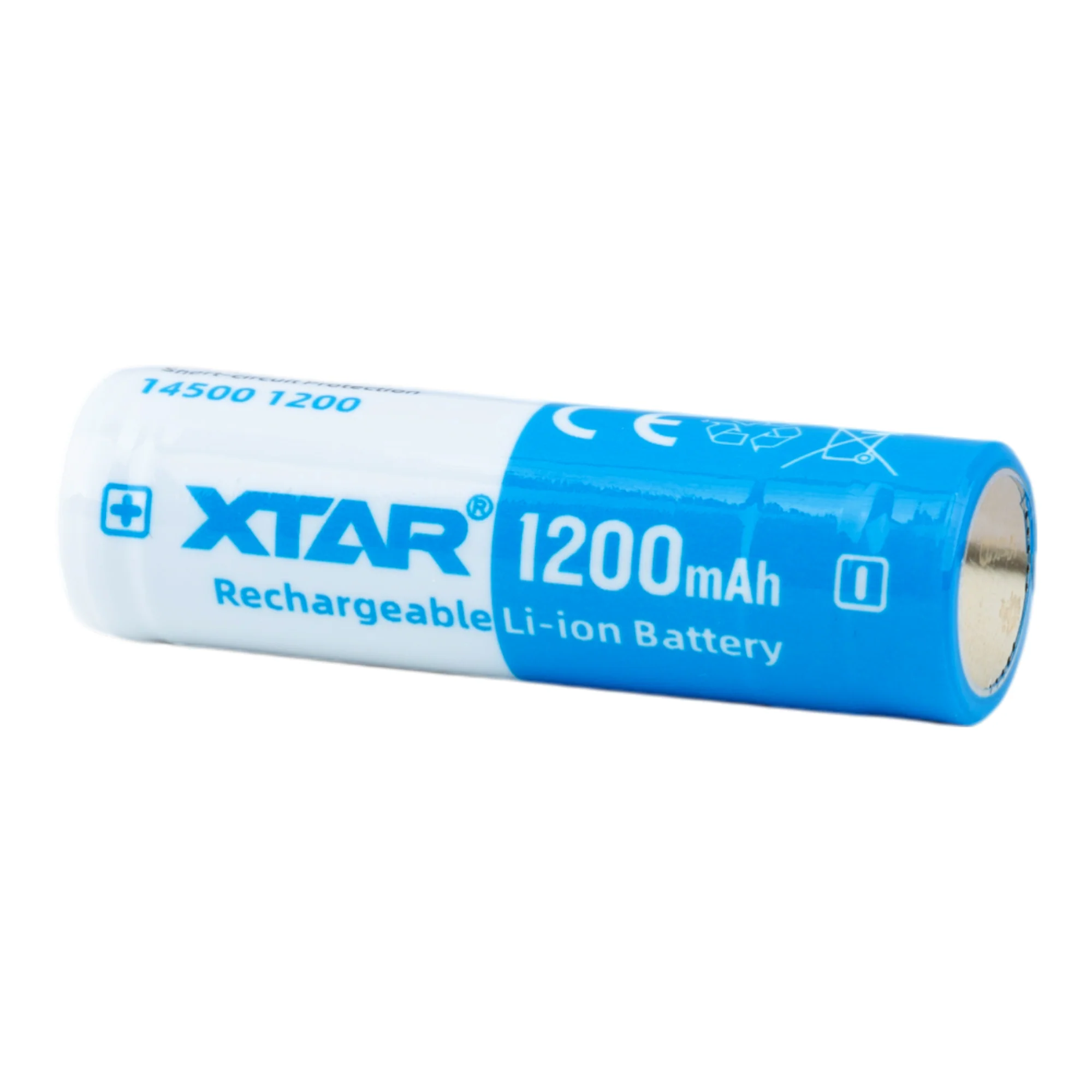

The XTAR 3.6V 14500 1200mAh Lithium Battery delivers high-capacity performance and enhanced safety in a compact form factor. With a genuine 1200mAh rating, protection circuitry, and consistent 2.5A output, this cell is engineered for small devices that require dependable and long-lasting power.

Applications / Uses

• High-performance LED flashlights
• Portable compact electronics
• Professional lighting tools
• Measurement and inspection devices
• Hobby and specialty power applications

SPECIFICATIONS

Model	14500
Nominal Capacity	1200mAh
Nominal Voltage	3.6V
Fully Charged Voltage	4.2V
Discharge End Voltage	2.5V
Max Continuous Discharge Current	2.5A
Transport Voltage	3.7V–3.9V
Protected	Yes
Positive Terminal	Button Top
Cycles	500+
Storage Temperature	-20~50℃ (Best 25±5℃)
Dimensions	φ14.3±0.3 × H50.5±0.5 mm
Net Weight	≤20g
Data Specification Sheet:	XTAR 3.6V 14500 1200mAh Lithium battery Datasheet
